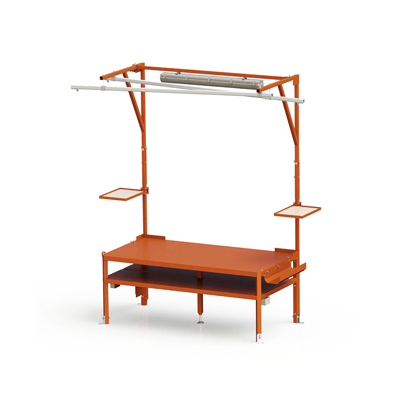

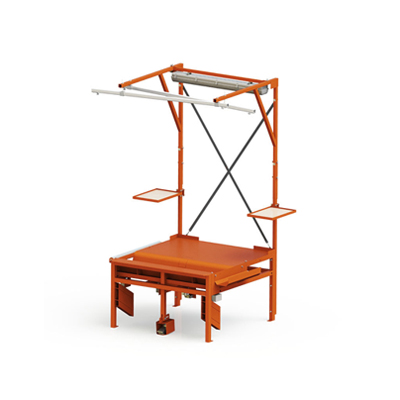

A universal pneumatic nailing table, Pneumatico PT-1900 features an adjustable working top, pneumatic clamping of support elements (blocks or stringers), and pneumatic lift of the pallet towards the operator.

Pneumatico PT-1900 is an adjustable, semiautomatic pallet nailing table for pallets of different sizes. Its ergonomic construction allows fast and easy adjustment of the pallet template size. Widths may vary 800-1900 mm and the table supports lengths up to a maximum of 1300 mm. Only one operator is required to produce 210-230 pallets during a single 8 hour work shift.

The operator uses multiple nail guns for different sizes of nails. Each of the nail guns is suspended on an overhead roller track for operator convenience. The roller track allows the nail guns to move freely along the rail mounting system overhead. The design of the table guarantees production efficiency as well as operator’s comfort.



We offer a standard kit that includes:

  • Pneumatico PT-1900 table together with pneumatic accessories, i.e. valves, actuators
  • 2 Control levers
  • Central air regulator
  • 2 FLR Air units (Filter Regulator Lubricator. Possibility to set different pressure for each nailer)
  • 6 Anvils to bend AN6 nails
  • 3 Templates to produce “ bottoms” of P9 pallets
