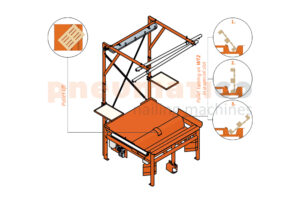

The PNEUMATICO WT2 repair table is a step-change in the pallet repair process. The table is provided with a pneumatic lift that allows for 360-degree rotation of the pallet and a slot for turning the pallet over. This reduces worker effort and increases productivity.
Technical specifications:
- Corners of table top bevelled at 45 degrees – reduced blade usage
- Electrical installation hidden inside the table
- Led lighting
- Shelves and rollers can be fitted on both sides
- Specially designed rail system – automatic nail gun return
- Pallet-turning slot
- Pneumatic lift – allows for pallet rotation
- Possibility of fitting blocking screws to prevent the pallet from sliding on the table
- Adjustable pallet lifting pedal in the centre of the table
- Table weight: 325 kg
- Worktop thickness: 8 mm

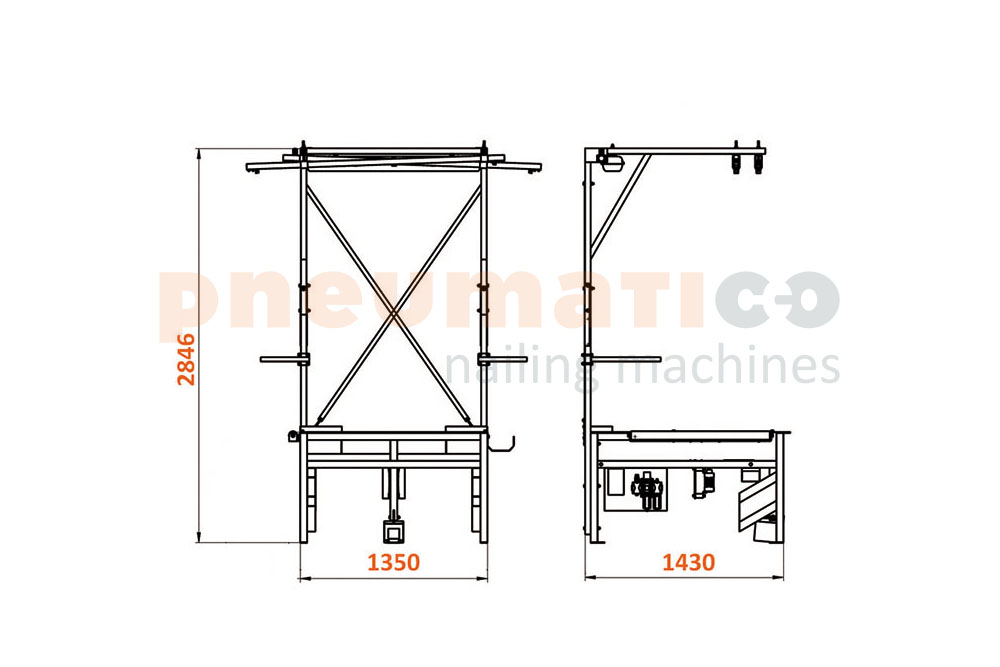

External dimensions:
- Worktop width: 1350 mm
- Table height comprising rail mounting system for balancers: 2846 mm
- Table depth: 1430 mm
Certified industrial design: 015022332-0001
Basic equipment
Pneumatic Pallet Repair Table WT2
Additional equipment
TECNA balancer 9321
TECNA balancer 9322
Stanley Bostitch nailer N80CB-1
Stanley Bostitch nailer N58C-1-E
Gwoździarka Stanley Bostitch IC90P-1-Epal
Spiral polyurethane hose with fittings
PU Spiral Tube for TECNA Balancers
Cable holder for nail guns. 1 kpl. - 2pcs 453581
Cengar PS100 pallet repair spreader
Sabre saw Makita 1510W JR3070CT
Bosch S10222HF Pallet Repair - Saw Blades 2608658658
TECNA balancer 9321
Technical specifications:
- Load bearing capacity: 2 – 4 kg
- Rope length: 2,0 m
Description:
- Cast aluminium body
- Stainless steel rope
- Adjustable capacity by means of a knob
- Rubber stroke limiter
- Coated with antifriction material
- Polyamides thimble preventing hook friction
TECNA balancer 9322
Technical specifications:
- Load bearing capacity: 4 – 6 kg
- Rope length: 2,0 m
Description
- Cast aluminium body
- Stainless steel rope
- Adjustable capacity by means of a knob
- Rubber stroke limiter
- Rope coated with antifriction material
- Polyamides thimble preventing hook friction
Stanley Bostitch nailer N80CB-1
Technical specifications:
- Tool weight: 3,87 kg
- Operating pressure: 5 – 7 bar
- Air consumption: 1,9 l/ shot
- Magazine capacity: 250 – 300 nails
Dedicated nails:
- Nails length: 38 – 80 mm
- Nails diameter: 2,5 – 3,3 mm
Stanley Bostitch nailer N58C-1-E
Technical specifications:
- Tool weight: 2,68 kg
- Operating pressure: 5 – 7 bar
- Air consumption: 1,0 l/ shot
- Magazine capacity: 300 – 350 nails
Dedicated nails:
- Nails length: 25 – 55 mm
- Nails diameter: 2,03 – 2,5 mm
Gwoździarka Stanley Bostitch IC90P-1-Epal
Technical specifications:
- Tool weight: 5,3 kg
- Operating pressure: 4,9 – 8,3 bar
- Air consumption: 7,0 l/ shot
- Magazine capacity: 225 nails
Dedicated nails:
- Nails length: 45 – 90 mm
- Nails diameter: 3,4 mm
PU Spiral Tube for TECNA Balancers
P931X and P932X are kits exclusively designed to feed the suspended pneumatic tools with compressed air. The material is light and ergonomic. The rope is placed inside the spiral tube. The grips might be installed to both old and new TECNA balancers without any interference in its internal housing.
Kit P931X includes:
• Polyurethane spiral tube without fitting
• A set of steel galvanized grips
• One straight plug nipple 10 x 6,5 mm ¼” external thread
• One angular rotary plug nipple 10 x 6,5 mm ¼” external thread
• One male Quickcoupling ¼” internal thread
• One female Quickcoupling ¼” internal thread
Kit P931X fits:
• TECNA 9311, 9312, 9313
Kit P932X includes:
• Polyurethane spiral tube without fitting
• A set of steel galvanized grips
• One straight plug nipple 12 x 8 mm ¼” external thread
• One angular rotary plug nipple 12 x 8 mm ¼” external thread
• One male Quickcoupling ¼” internal thread
• One female Quickcoupling ¼” internal thread
Kit P932X fits:
• TECNA 9320, 9321, 9322, 9323
• TECNA Light 4, Light 6, Light 8
Cable holder for nail guns. 1 kpl. - 2pcs 453581
The holder allows the installation with each nail gun model. Once connected, we can connect the holder to the carabiner of the balancer.
The 30 cm long lines are attached from the top of the nailer under the four screws that hold the “nailers cap”.
Cengar PS100 pallet repair spreader
The CENGAR PS100 pallet repair spreader is the ideal tool for recycling and repairing pallets. The wooden boards of the upper or lower part of the pallet are pulled apart by a pneumatic cylinder so that the exposed nails can be cut off with a sabre saw.
Advantages of the machine:
- speeds up the work
- increases safety
- wood can be reconditioned and reused, e.g. for the production of industrial furniture
- less wear of the saw blades due to better accessibility of the cutting area
Technical data
- Operating pressure: 1 – 8 bar
- Piston stroke: 42 mm
- Piston stroke: 42 mm
- Distribution capacity at 4 bar: 1260 N
- Distribution capacity at 5 bar: 1625 N
- Distribution capacity at 6 bar: 1990 N
- Distribution capacity at 7 bar: 2355 N
- Distribution capacity at 8 bar: 2720 N
- Air connection: 1/4
- Weight: 2.7 kg
Sabre saw Makita 1510W JR3070CT
The sabre saw JR3070CT from the Japanese manufacturer Makita is equipped with a robust 1510 watt motor and is therefore suitable for special tasks. With a stroke length of 32 mm, the saw has a high cutting capacity. This sabre saw is ideal for cutting wood and metal.
Technical data:
- Rated power: 1510 watts
- Frequency of strokes in idle mode: 0 – 2800/min
- Length of stroke: 32 mm
- Cutting capacity in pipes: 130 mm
- Cutting capacity in wood: 255 mm
- Total length: 485 mm
- Weight: 4,6 kg
Product features:
- Saw with AVT anti-vibration technology
- Infinitely variable speed control and constant speed thanks to the electronics used in the machine
- Starting current limiter
- overload clutch that protects the user and signals damage to the gearbox
- tool-free adjustment of the guide foot at the touch of a button
- the machine is protected against dust and water
- infinitely variable stroke frequency adjustment and 4-step oscillation adjustment
- Universal saw blade holder
Bosch S10222HF Pallet Repair - Saw Blades 2608658658
Sabre saw blades made of bi-metal for the repair and reconditioning of pallets. The reciprocating saw blade S 1022 HF Flexible for wood and metal enables flat cuts in wood and metal.
The BIM blade is optimised for pallet repair.
The medium tooth pitch (2.5 mm) of the blade enables cutting through nails and staples common in pallet construction.
The standard blade length of 200 mm enables cutting of up to 150.
Your company and employees receive:
- a smart design (certified industrial design: 015022332-0001), manufactured in the EU (Poland),
- a high-quality product at an affordable price,
- a solid steel work top,
- very well lighted workstation – central power and compressed air connection,
- pallet recycling to help protect the environment.
1. Why does this table cost so much? Is it worth it?
The price includes not only the WT-2 work table itself, but also a set of guides with carriages, a pneumatic pallet lift, LED lighting, electrical installation with sockets, a distribution box, an air preparation unit (FRL), a CE declaration and other components. It is a complete pallet repair station, designed based on the real needs of companies repairing EPAL/EURO pallets. The price includes features that are often charged separately in other solutions.
2. What problems does this table solve in everyday work?
- Reduces physical effort for the operator thanks to the lift and pallet turning chute.
- Allows the pallet to be rotated 360° without bending down.
- Improves work organisation with shelves, sockets and tool holders.
- Increases productivity
- Eliminates the need for external air installations — everything is built in.
3. How does the WT-2 differ from the WT-1 or from competing tables?
The WT-2 is a model specially optimised for EPAL/EURO pallets, with a larger and more ergonomic worktop (1350×1430 mm), a chute for vertical pallet turning and a pneumatic lift. The WT-1 is a simpler version without some of these features.
- Pallet lifting and 360-degree rotation
- Trough for turning pallets
- Design specially adapted for pallet repair
4. Who is this table ideal for, and who will not find it useful?
Ideal for:
- Companies involved in the repair of EPAL/EURO pallets.
- Operators who value ergonomics and minimising effort.
Not suitable for:
- Customers looking for a table without automation.
5. Is there any evidence that this table works as well as you say?
Yes, please see the references below.
-
- Forest Consult&Co – WT2
6. What is the purpose of the pneumatic lift and chute, and do these components make work easier?
| Component | Question | Answer |
|---|---|---|
| Pneumatic lift | Does it really help? | Yes – it allows the pallet to be rotated 360° without lifting it manually. |
| Pallet turning chute | Does it help? | Yes – even heavy pallets can be rotated effortlessly. |
7. Is the WT-2 table intended exclusively for companies involved in pallet repair?
Not only. The WT-2 table is easy to use and is not only used in specialised repair shops. We have many customers from other industries who regularly use pallets to transport their goods and need to repair or improve them before shipping. The WT-2 is also ideal for such cases, increasing work efficiency and ergonomics.
