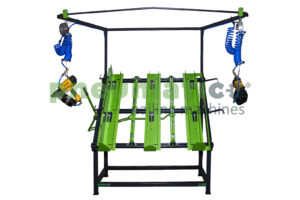

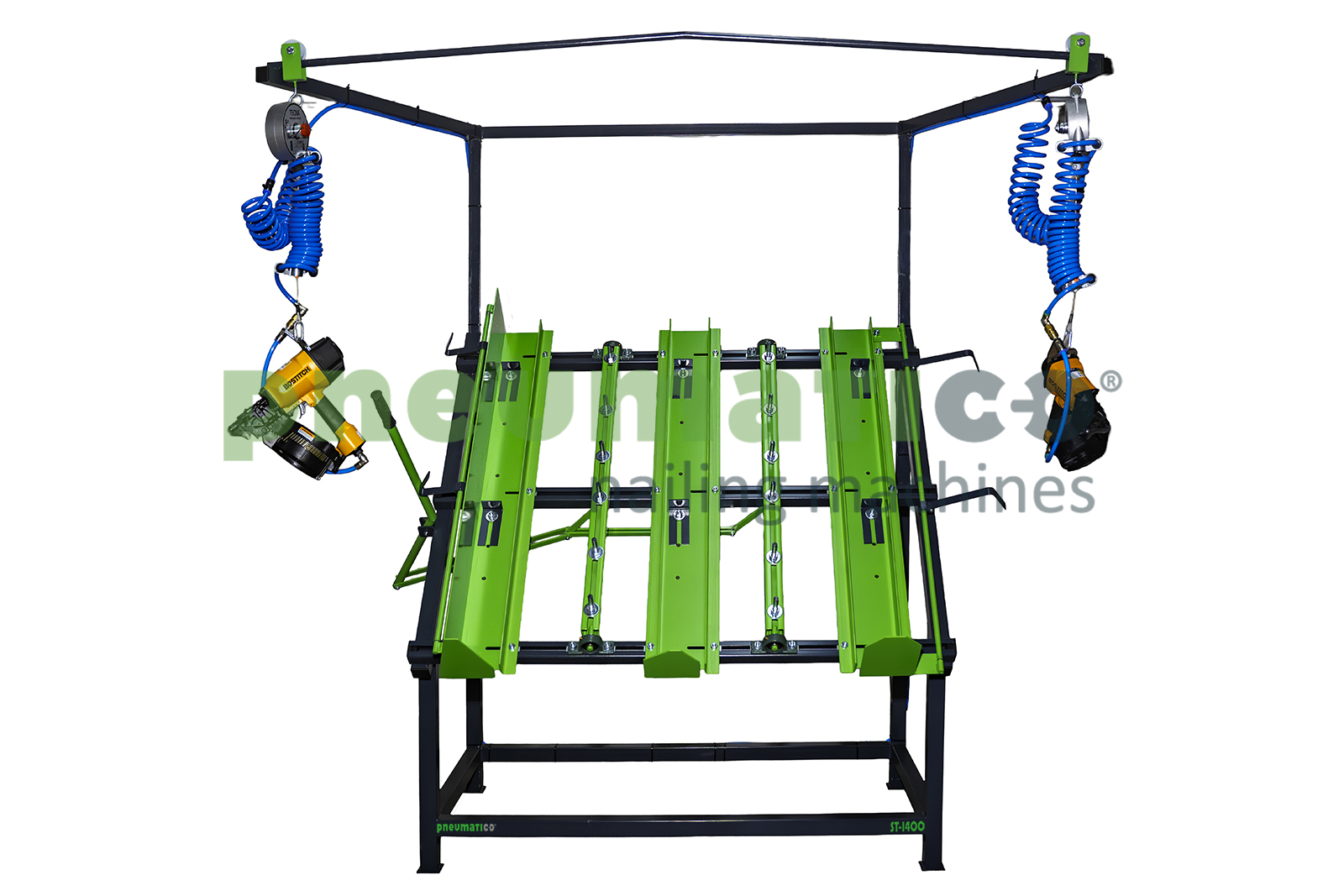

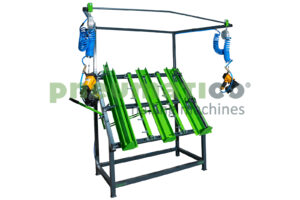

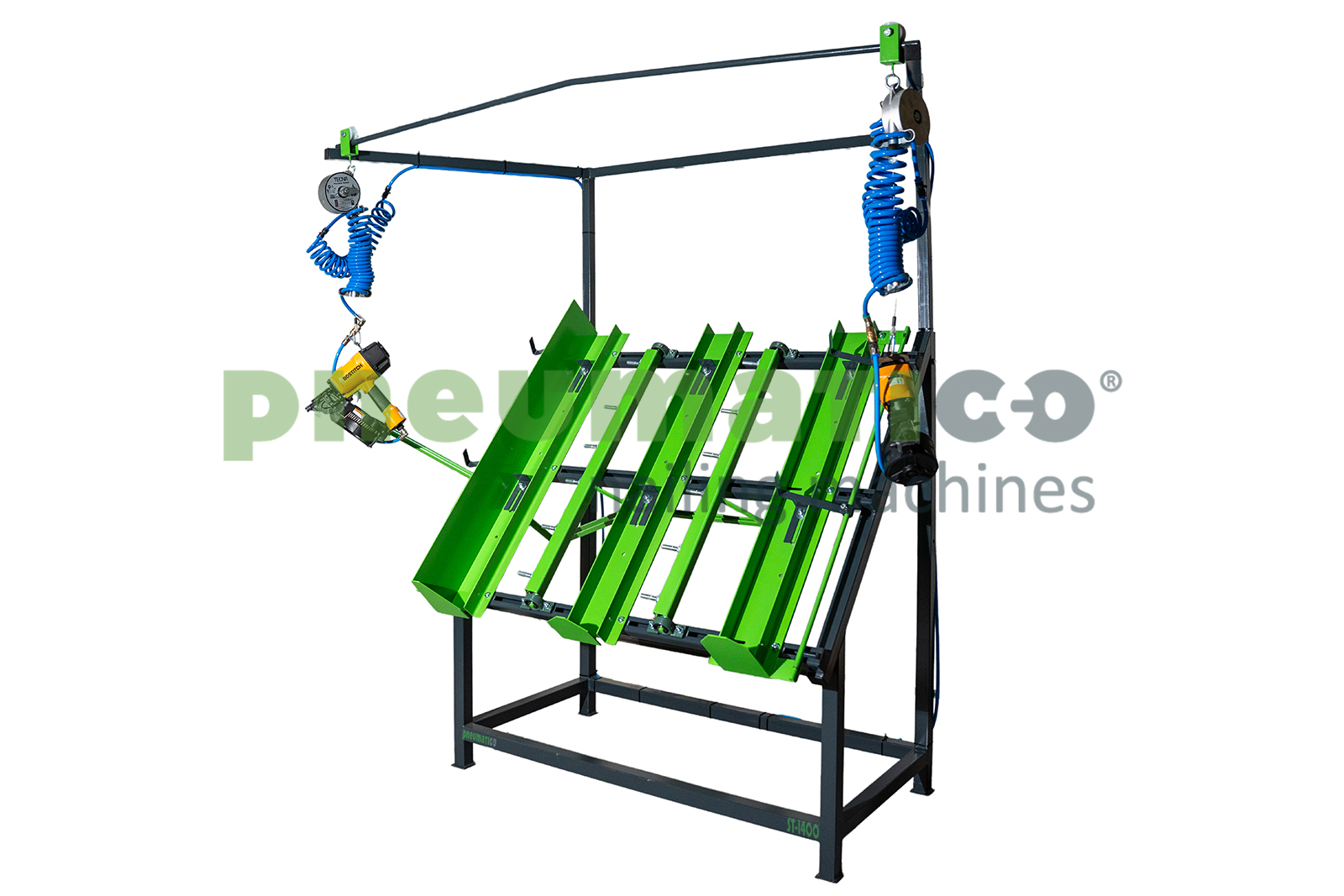

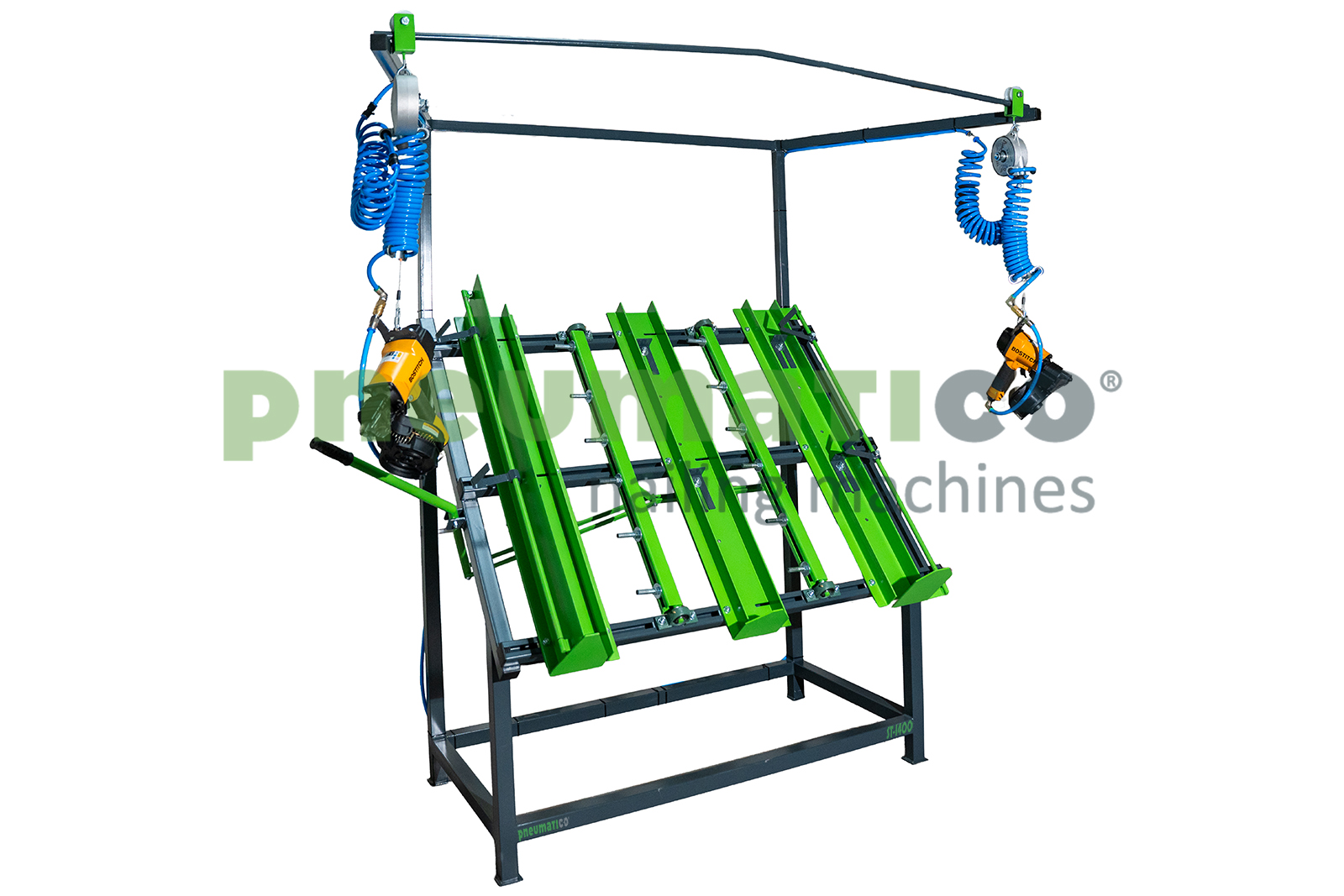

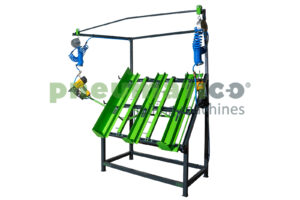

The Pneumatico ST-1400 universal manual pallet nailing table is the simplest and most cost-effective version of a pallet nailing station, designed for companies starting production or small manufacturers who do not yet require automation.

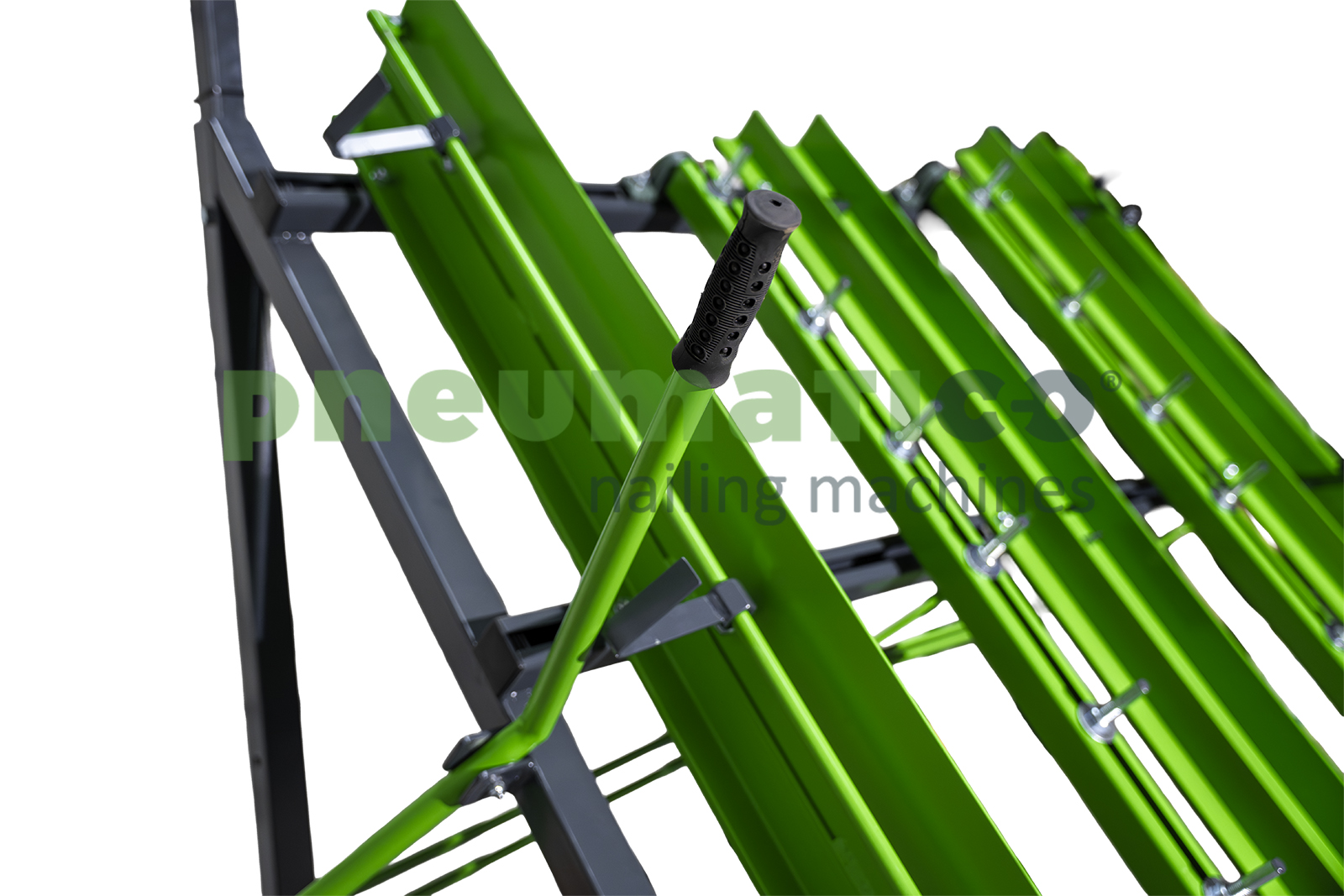

It is a fully manual workbench with manually extendable ‘combs’ for supporting and positioning the horizontal boards. It allows work with pallets up to 1400 mm in length and a working height of up to 1200 mm.
Unlike more advanced systems, the Pneumatico ST-1400 has no pneumatics or automatic clamps – all work is carried out manually, which significantly reduces the cost of purchase and maintenance, but at the same time means a basic level of equipment, simpler than semi-automatic industrial tables.
This solution works particularly well for the production of single-use pallets and for less demanding customers, where low production costs and fast, uncomplicated production are key.
The ideal choice for small workshops and small-batch production, where simplicity, flexibility and a low initial investment are what count.
Technical specifications:
- weight: 159 kg
- operating pressure: up to 8 bar
- construction: structural steel
Dimensions of pallets produced:
- width: 1000 – 1400 mm
- length: 1200 mm

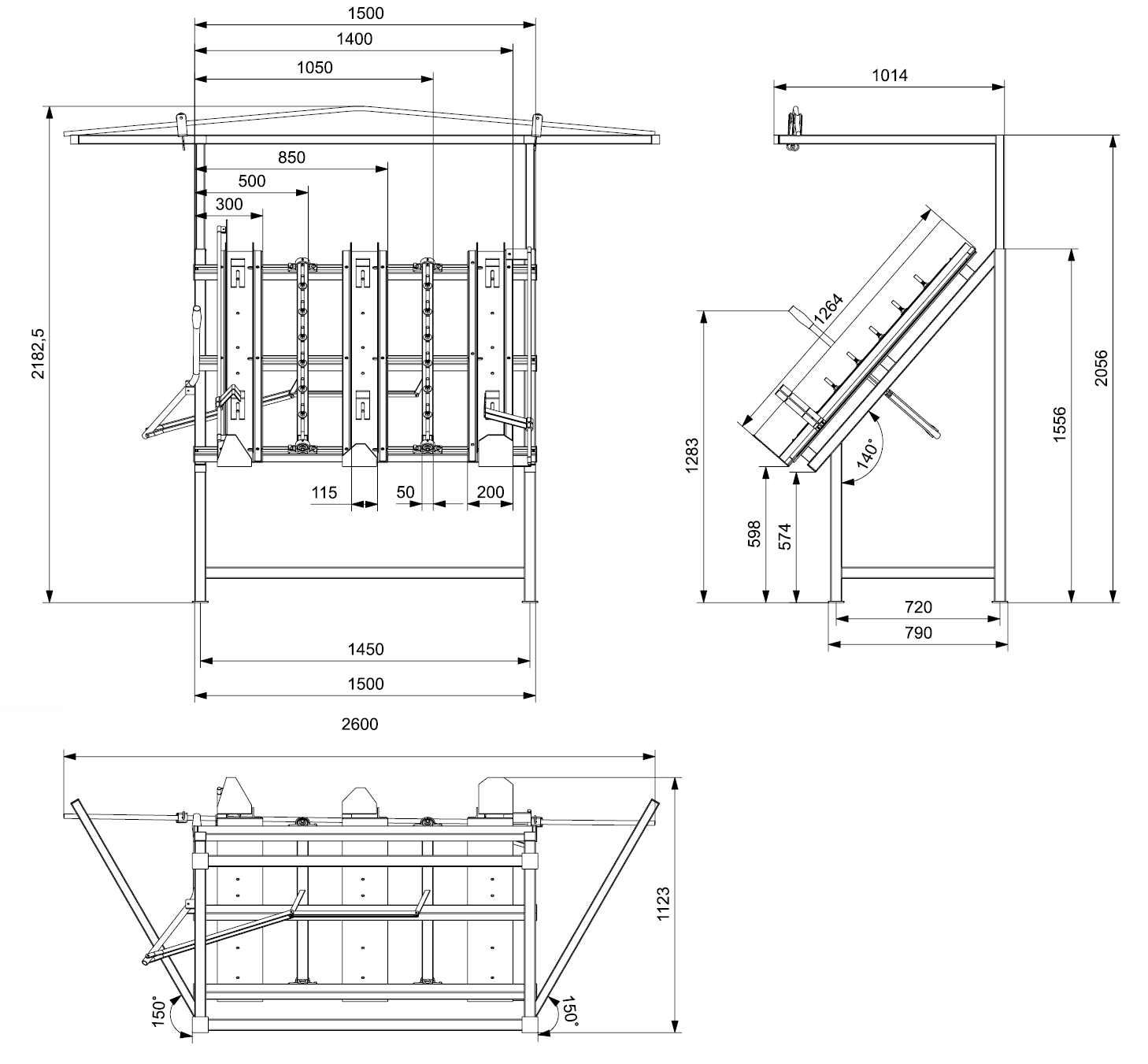

External dimensions:
- width of worktop: 1500 mm
- width of table with balancer mast: 2250 mm
- height of worktop: 1570 mm
- height of table with mast – mast: 2300 mm
Additional equipment
TECNA balancer 9321
TECNA balancer 9322
Stanley Bostitch nailer N80CB-1
Stanley Bostitch nailer N58C-1-E
Spiral polyurethane hose with fittings
Pneumatic grip for nailer
PU Spiral Tube for TECNA Balancers

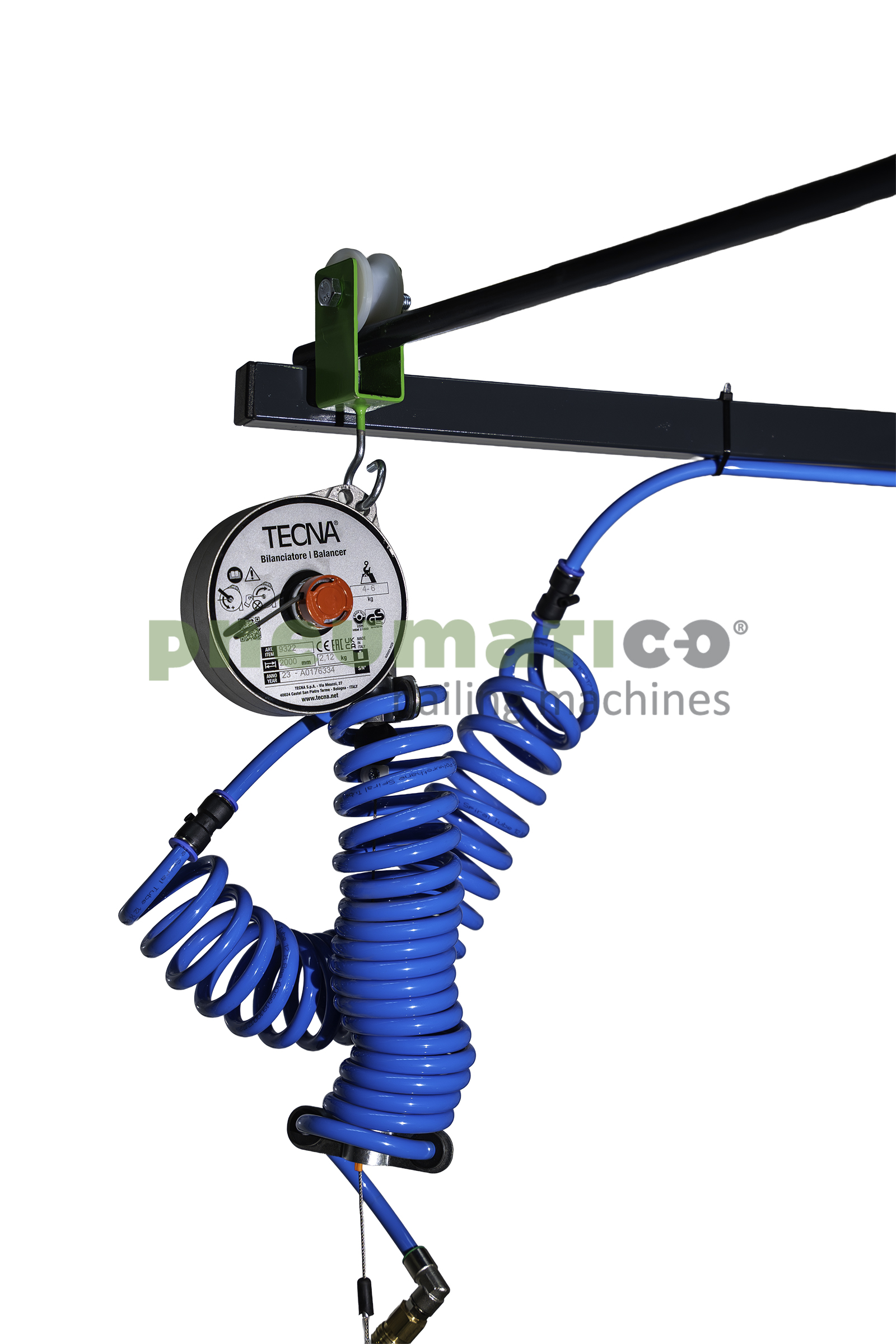

TECNA balancer 9321
Technical specifications:
- Load bearing capacity: 2 – 4 kg
- Rope length: 2,0 m
Description:
- Cast aluminium body
- Stainless steel rope
- Adjustable capacity by means of a knob
- Rubber stroke limiter
- Coated with antifriction material
- Polyamides thimble preventing hook friction
TECNA balancer 9322
Technical specifications:
- Load bearing capacity: 4 – 6 kg
- Rope length: 2,0 m
Description
- Cast aluminium body
- Stainless steel rope
- Adjustable capacity by means of a knob
- Rubber stroke limiter
- Rope coated with antifriction material
- Polyamides thimble preventing hook friction
Stanley Bostitch nailer N80CB-1
Technical specifications:
- Tool weight: 3,87 kg
- Operating pressure: 5 – 7 bar
- Air consumption: 1,9 l/ shot
- Magazine capacity: 250 – 300 nails
Dedicated nails:
- Nails length: 38 – 80 mm
- Nails diameter: 2,5 – 3,3 mm
Stanley Bostitch nailer N58C-1-E
Technical specifications:
- Tool weight: 2,68 kg
- Operating pressure: 5 – 7 bar
- Air consumption: 1,0 l/ shot
- Magazine capacity: 300 – 350 nails
Dedicated nails:
- Nails length: 25 – 55 mm
- Nails diameter: 2,03 – 2,5 mm
PU Spiral Tube for TECNA Balancers
P931X and P932X are kits exclusively designed to feed the suspended pneumatic tools with compressed air. The material is light and ergonomic. The rope is placed inside the spiral tube. The grips might be installed to both old and new TECNA balancers without any interference in its internal housing.
Kit P931X includes:
• Polyurethane spiral tube without fitting
• A set of steel galvanized grips
• One straight plug nipple 10 x 6,5 mm ¼” external thread
• One angular rotary plug nipple 10 x 6,5 mm ¼” external thread
• One male Quickcoupling ¼” internal thread
• One female Quickcoupling ¼” internal thread
Kit P931X fits:
• TECNA 9311, 9312, 9313
Kit P932X includes:
• Polyurethane spiral tube without fitting
• A set of steel galvanized grips
• One straight plug nipple 12 x 8 mm ¼” external thread
• One angular rotary plug nipple 12 x 8 mm ¼” external thread
• One male Quickcoupling ¼” internal thread
• One female Quickcoupling ¼” internal thread
Kit P932X fits:
• TECNA 9320, 9321, 9322, 9323
• TECNA Light 4, Light 6, Light 8
Examples of pallets that can be produced on the Pneumatico ST-1400 machine:
four way entry - open boarded, 3 base, jednorazowa
EPAL pallet
Advantages of the Pneumatico ST-1400:
- Work ergonomics: Approximately 15 pallets per hour per operator
- Versatility: The adjustable work surface allows for the production of EUR pallets, single-use pallets and square-edged pallets

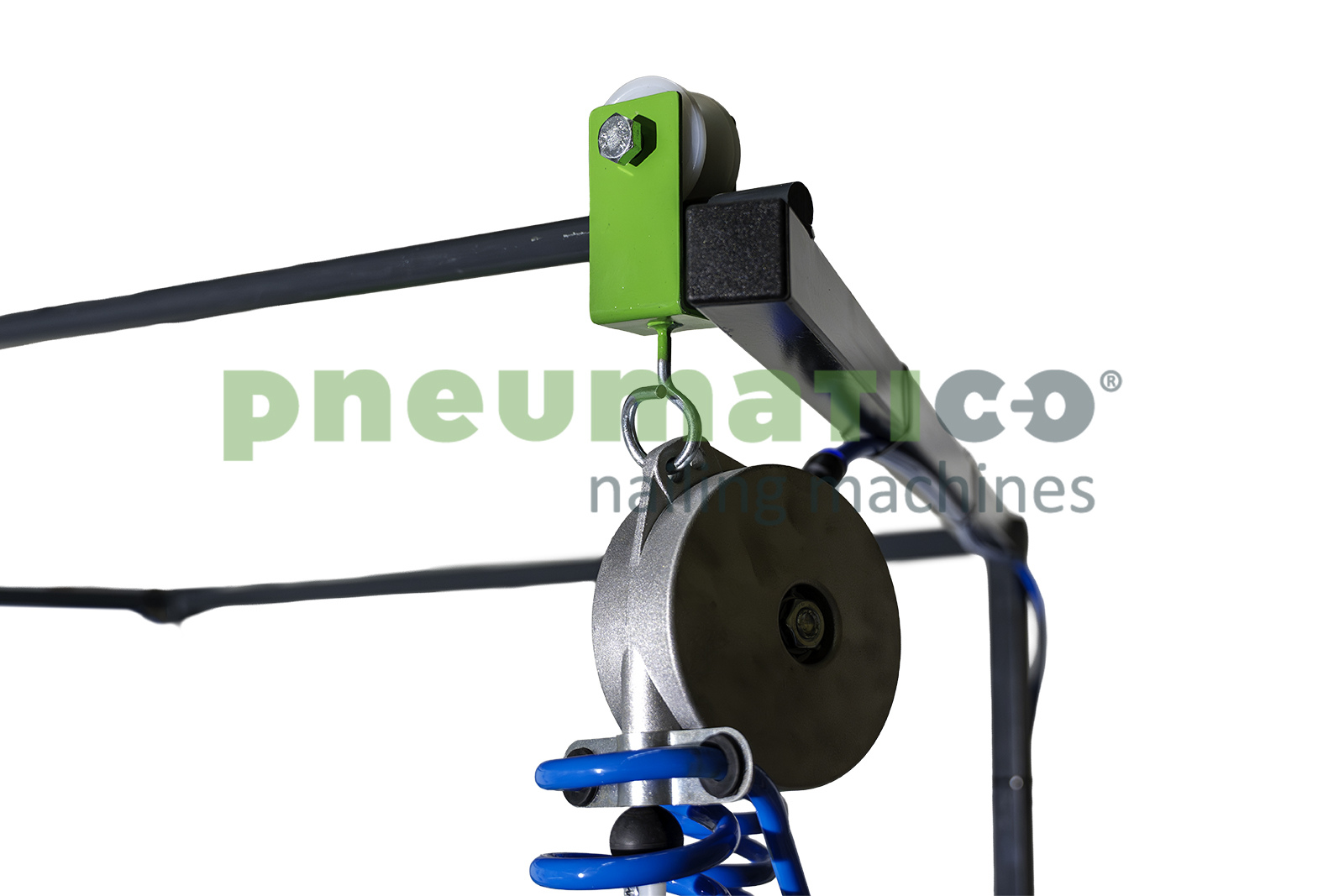

- Mast with balancers: Allows for smooth movement of the nailing machines during operation

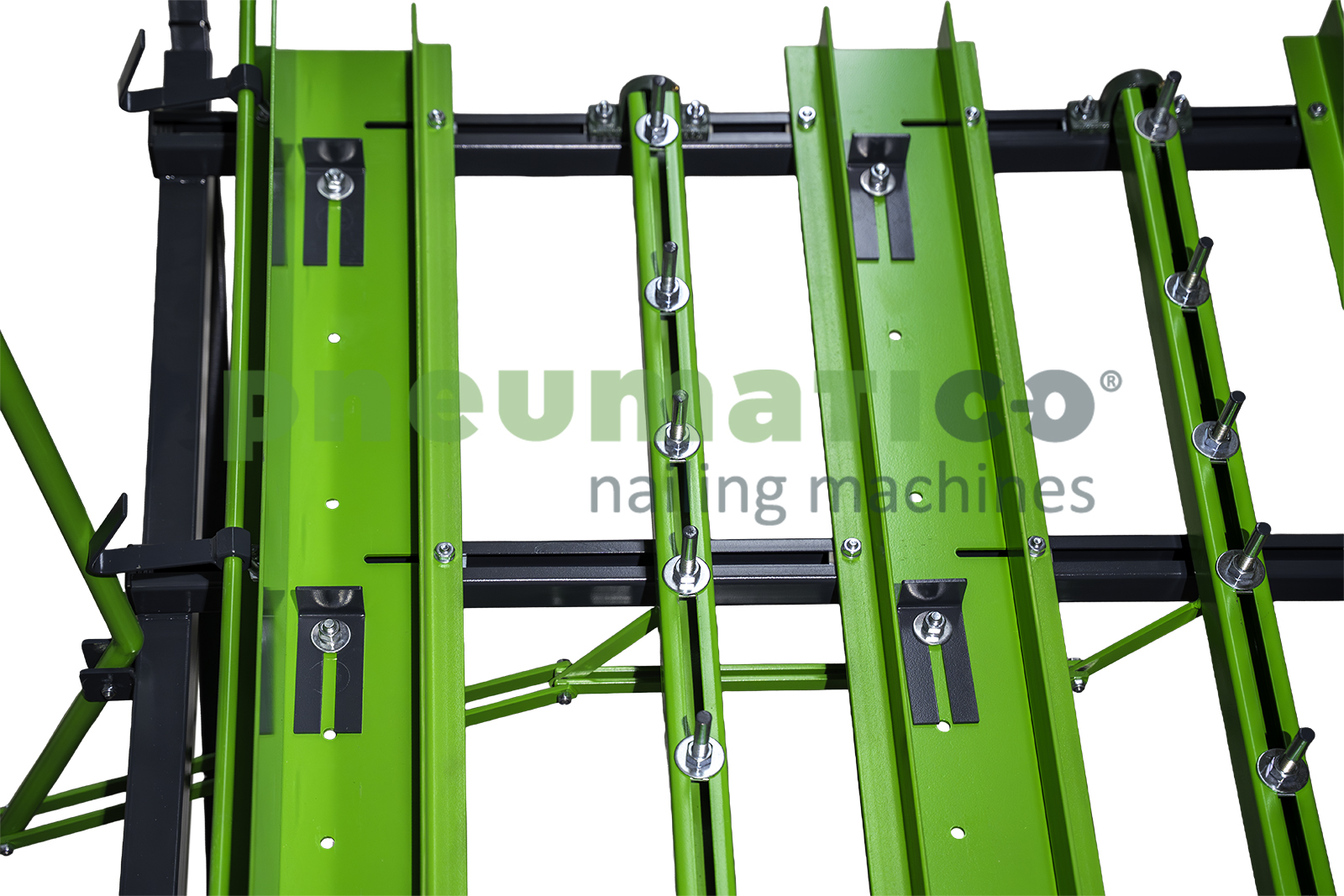

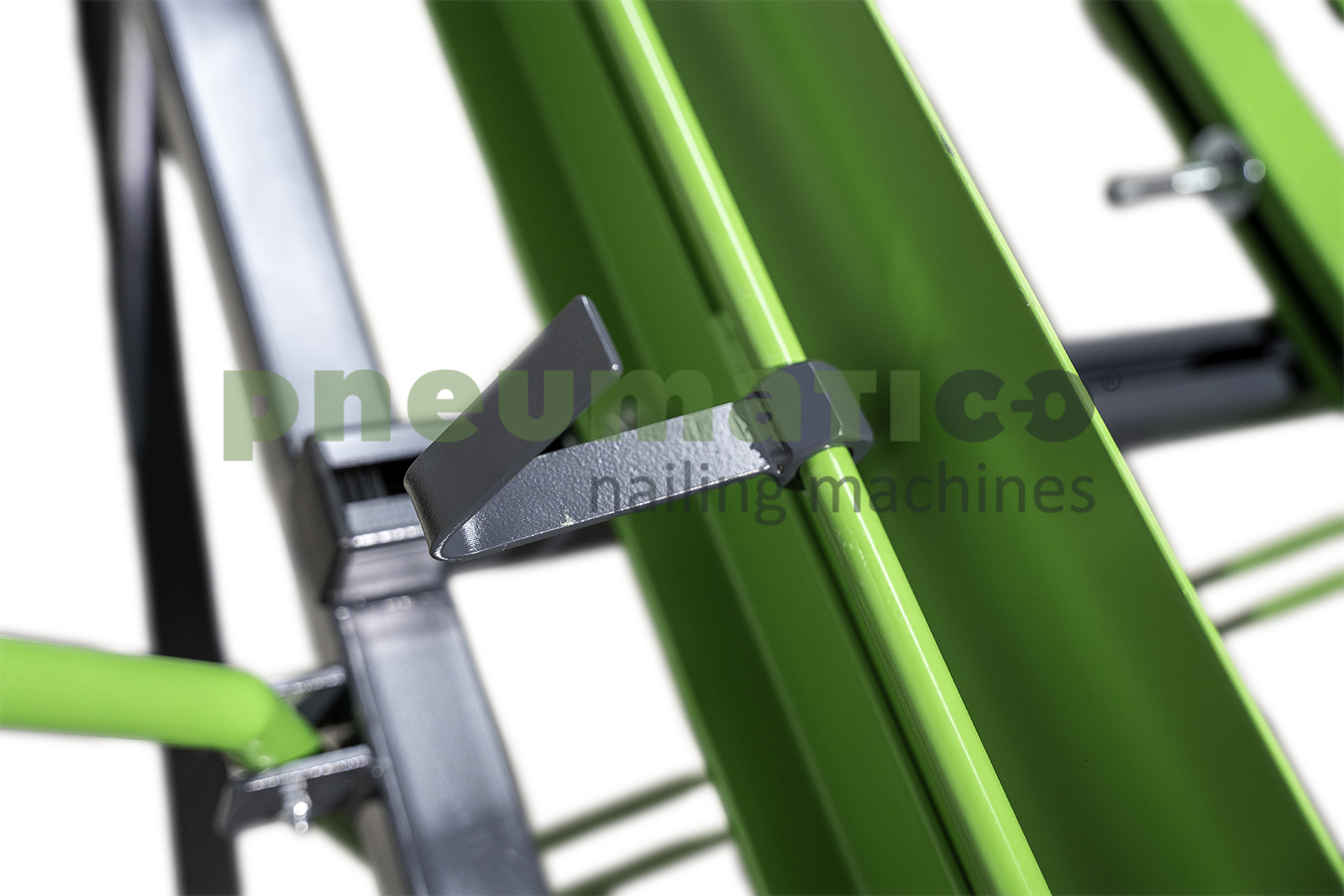

- Manually adjustable combs for horizontal boards
