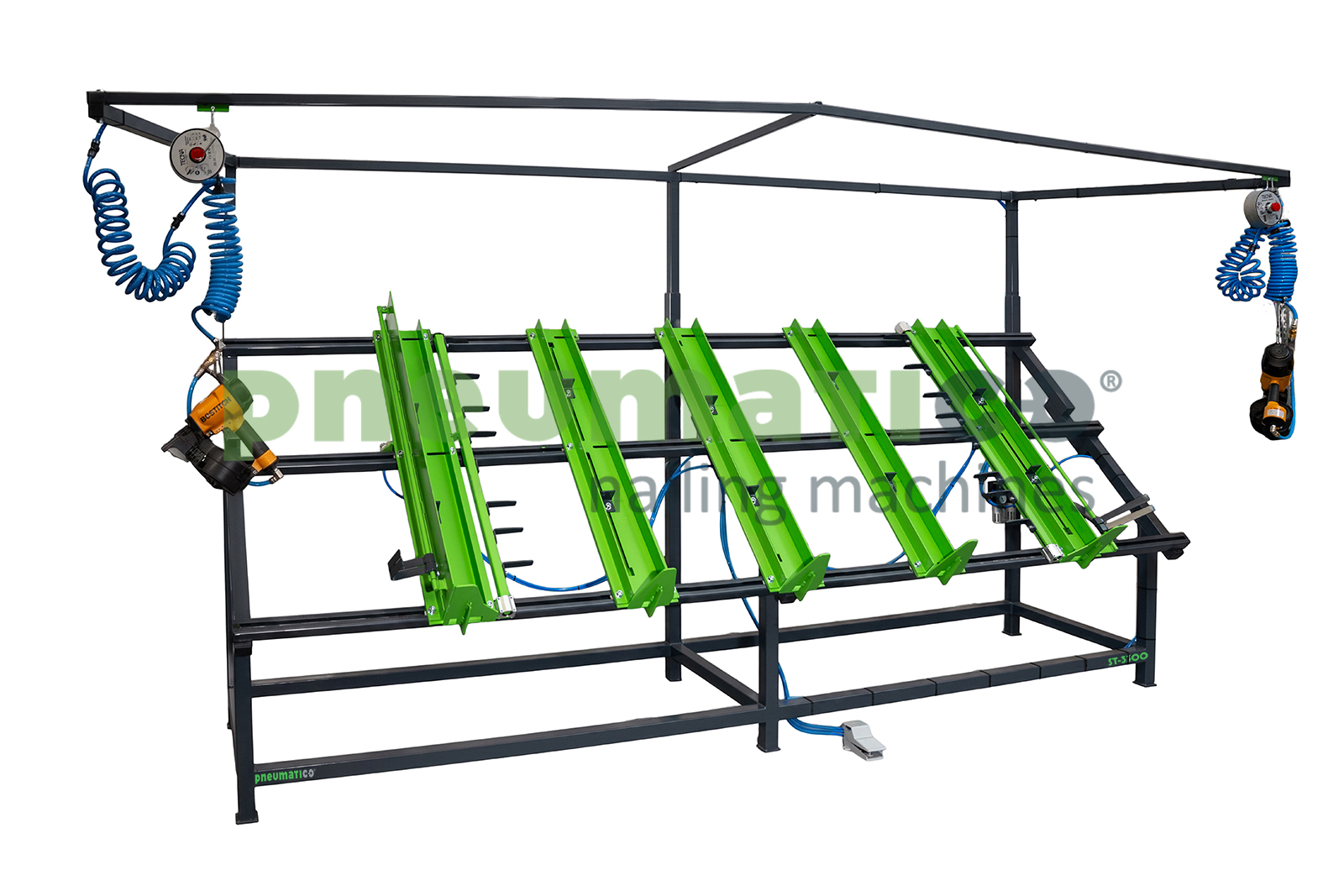

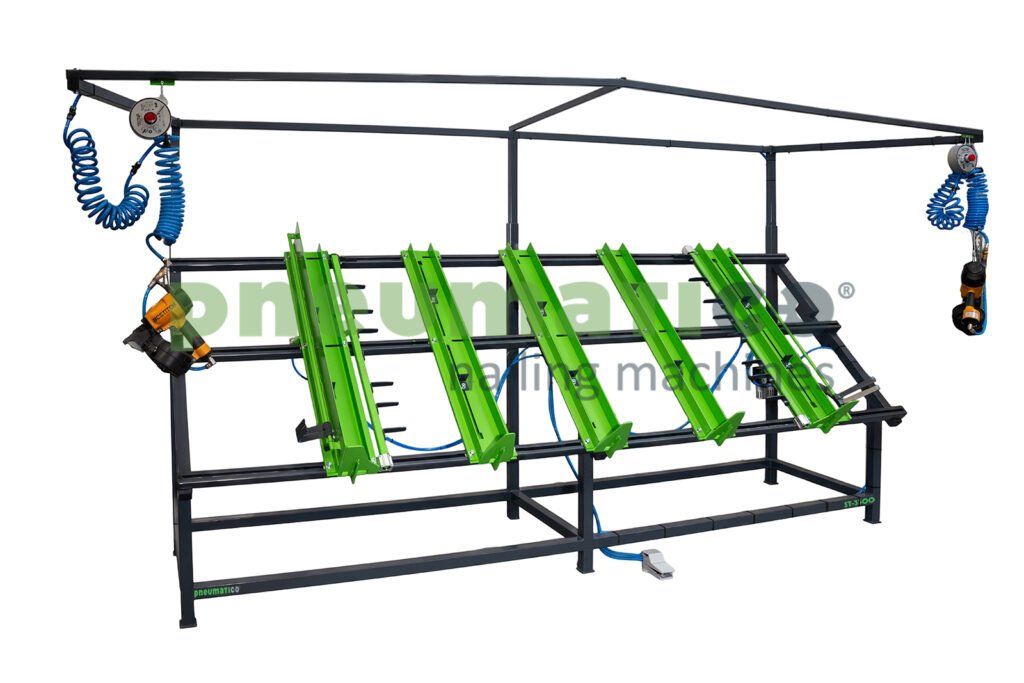

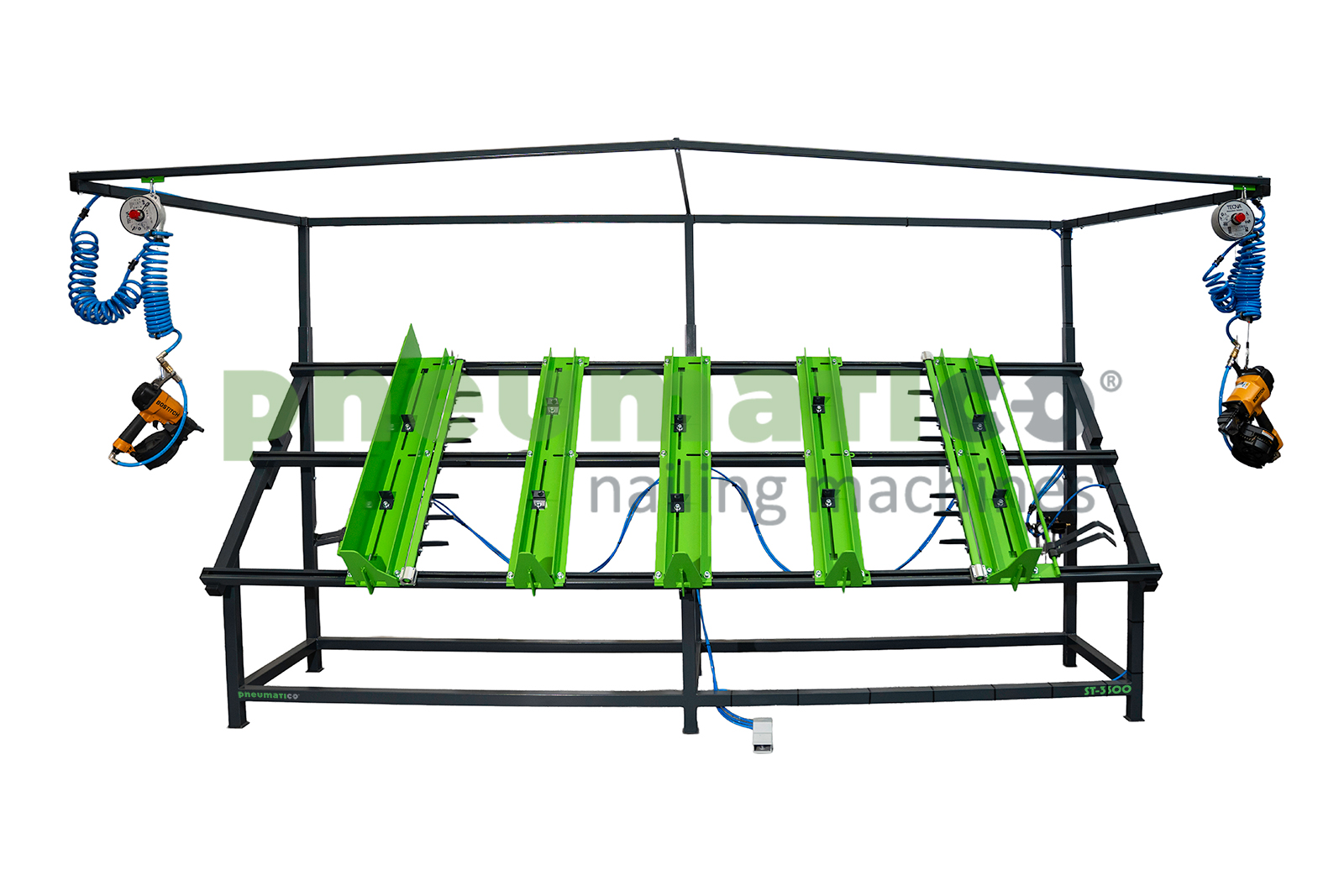

The Pneumatico ST-3300 universal semi-automatic pallet assembly table is a simple and economical version of a semi-automatic production station, designed for small plants that require a larger work surface and greater process stability, but still wish to keep investment costs low.

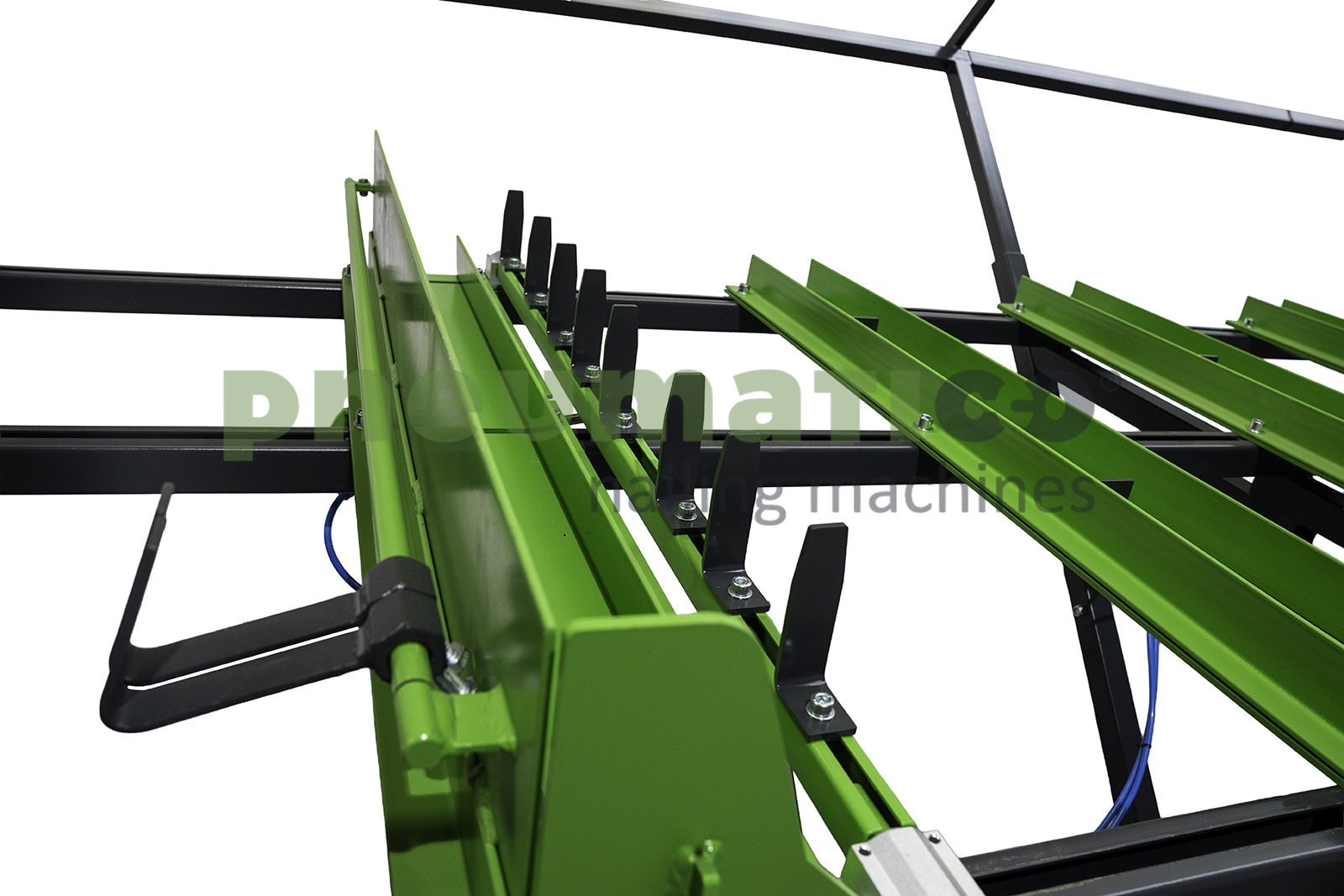

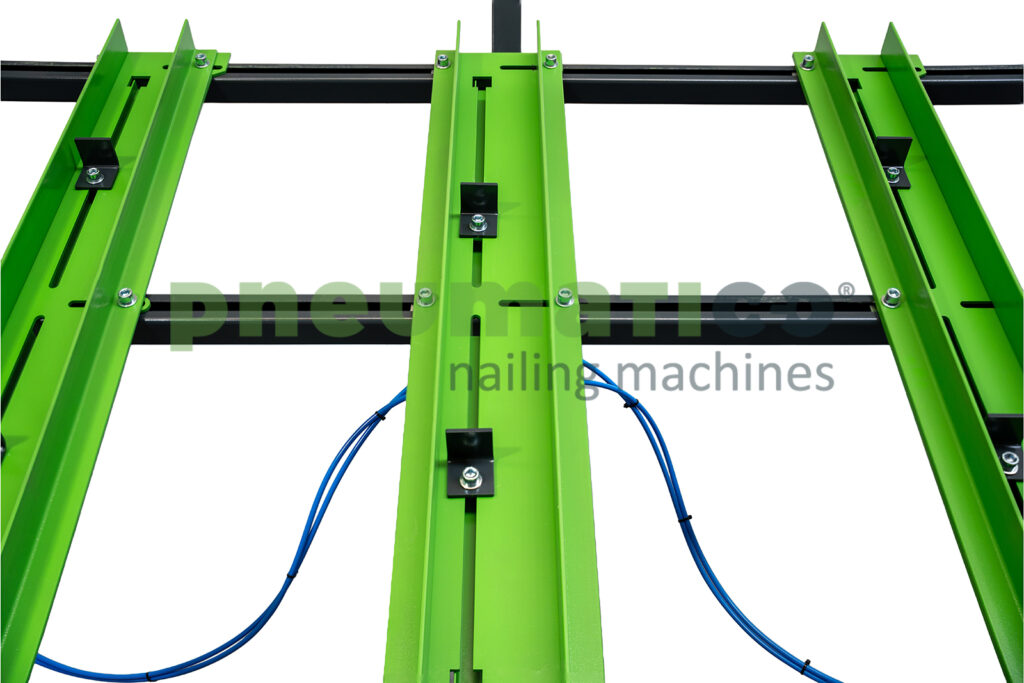

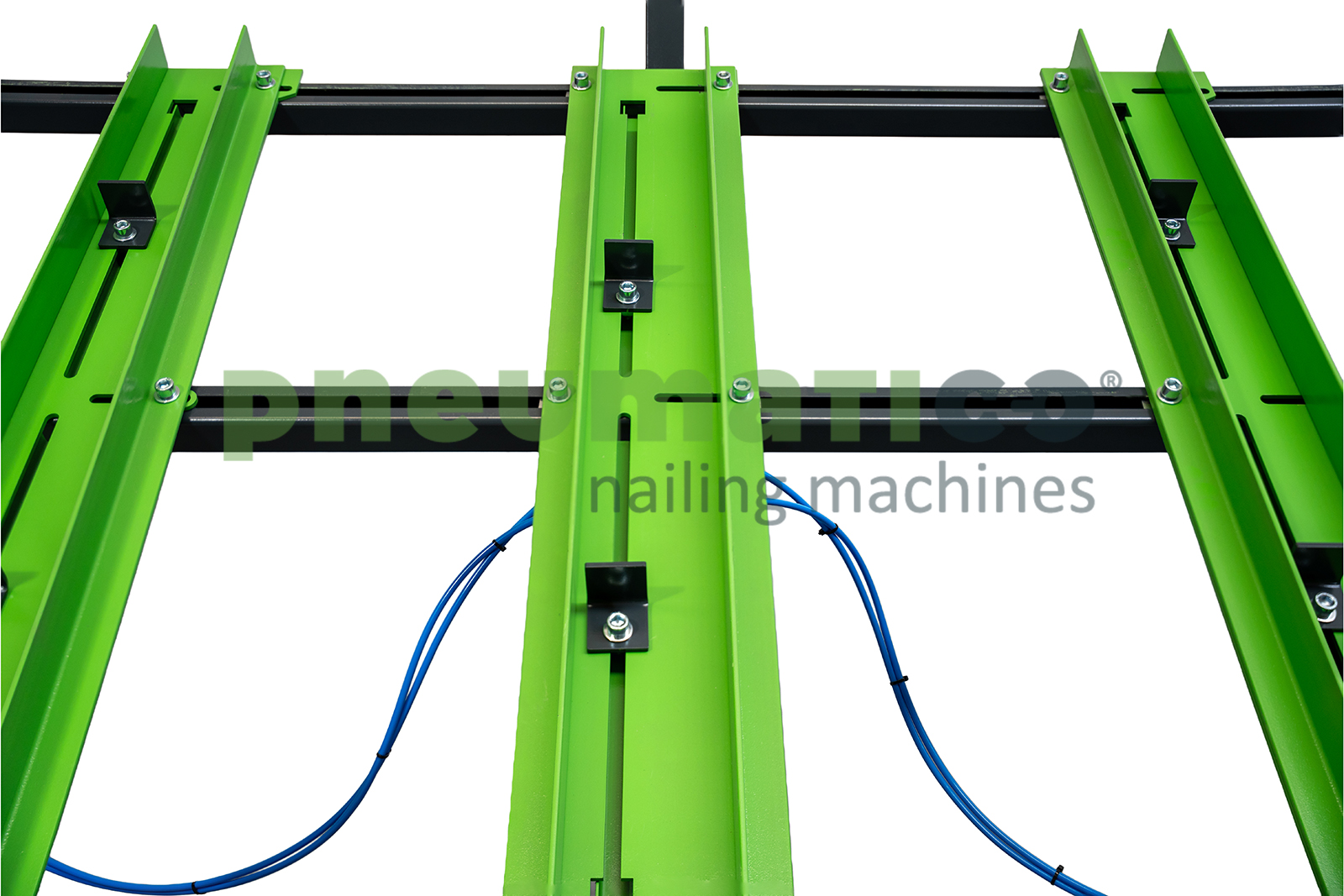

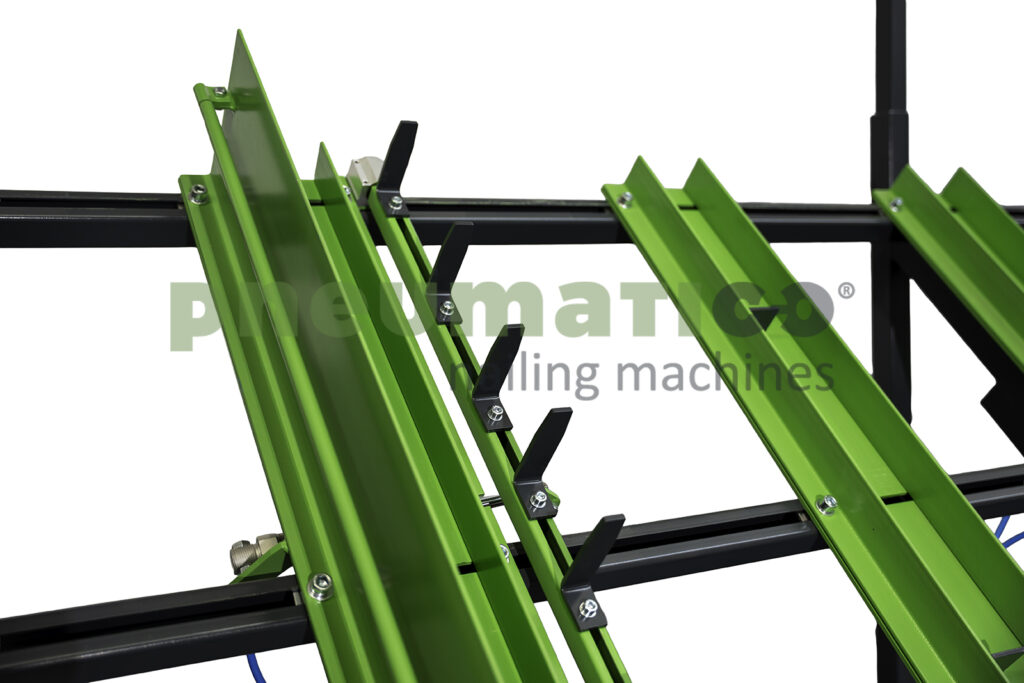

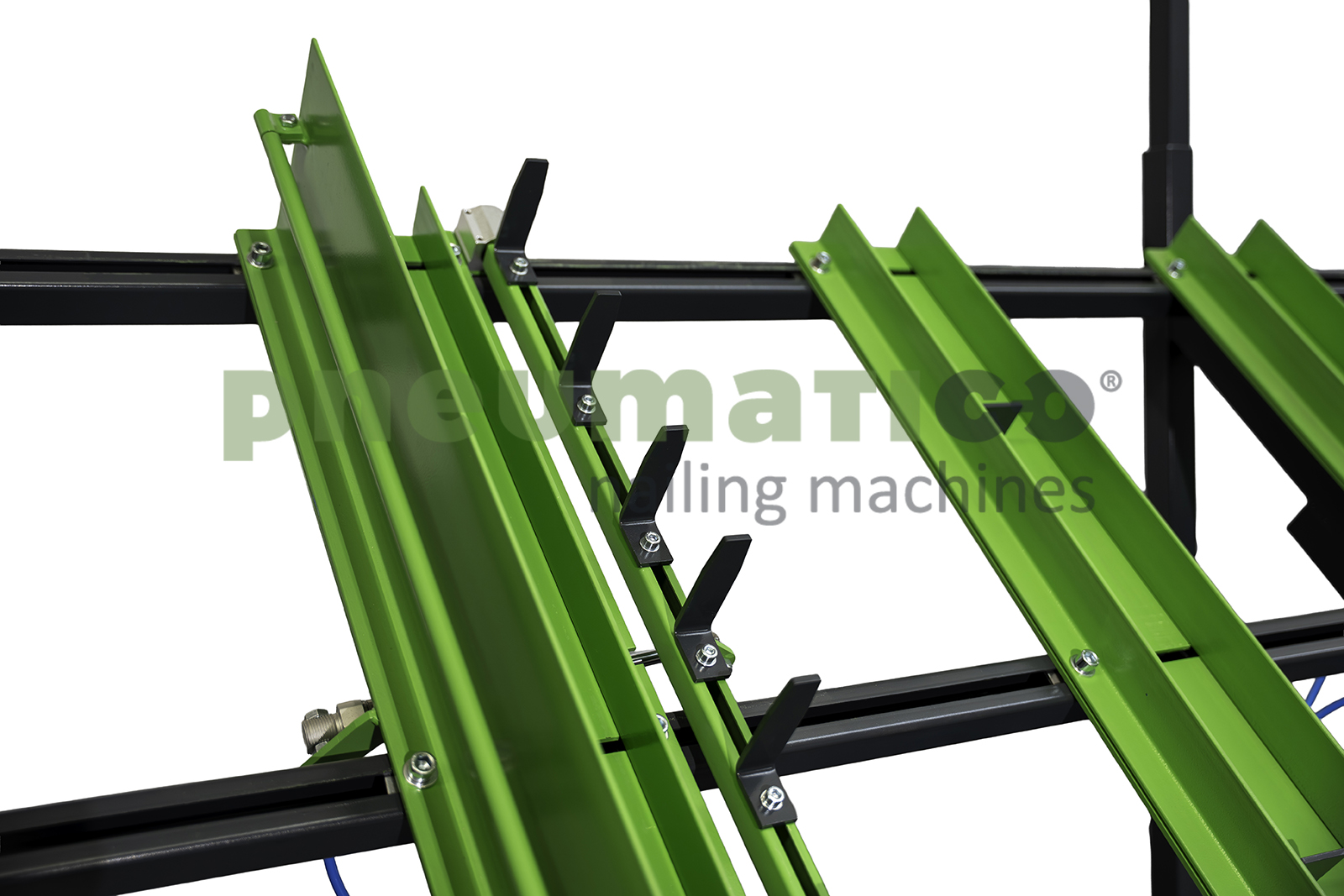

The table is equipped with pneumatic rakes for positioning horizontal boards, which facilitates their rapid arrangement and improves assembly repeatability.
Despite the use of pneumatic assistance, the design remains simple, robust and easy to operate. It remains an entry-level solution, focused on functionality and low running costs rather than advanced automation.
The Pneumatico ST-3300 is particularly well-suited to the production of disposable pallets and standard pallet designs for less demanding customers, where speed and simplicity of the process are key.
The ideal choice for small workshops and low-volume production, where simplicity, flexibility and a low initial investment are key.
Additional equipment
TECNA balancer 9321
TECNA balancer 9322
Stanley Bostitch nailer N80CB-1
Stanley Bostitch nailer N58C-1-E
Spiral polyurethane hose with fittings
Pneumatic grip for nailer
PU Spiral Tube for TECNA Balancers
TECNA balancer 9321
Technical specifications:
- Load bearing capacity: 2 – 4 kg
- Rope length: 2,0 m
Description:
- Cast aluminium body
- Stainless steel rope
- Adjustable capacity by means of a knob
- Rubber stroke limiter
- Coated with antifriction material
- Polyamides thimble preventing hook friction
TECNA balancer 9322
Technical specifications:
- Load bearing capacity: 4 – 6 kg
- Rope length: 2,0 m
Description
- Cast aluminium body
- Stainless steel rope
- Adjustable capacity by means of a knob
- Rubber stroke limiter
- Rope coated with antifriction material
- Polyamides thimble preventing hook friction
Stanley Bostitch nailer N80CB-1
Technical specifications:
- Tool weight: 3,87 kg
- Operating pressure: 5 – 7 bar
- Air consumption: 1,9 l/ shot
- Magazine capacity: 250 – 300 nails
Dedicated nails:
- Nails length: 38 – 80 mm
- Nails diameter: 2,5 – 3,3 mm
Stanley Bostitch nailer N58C-1-E
Technical specifications:
- Tool weight: 2,68 kg
- Operating pressure: 5 – 7 bar
- Air consumption: 1,0 l/ shot
- Magazine capacity: 300 – 350 nails
Dedicated nails:
- Nails length: 25 – 55 mm
- Nails diameter: 2,03 – 2,5 mm
PU Spiral Tube for TECNA Balancers
P931X and P932X are kits exclusively designed to feed the suspended pneumatic tools with compressed air. The material is light and ergonomic. The rope is placed inside the spiral tube. The grips might be installed to both old and new TECNA balancers without any interference in its internal housing.
Kit P931X includes:
• Polyurethane spiral tube without fitting
• A set of steel galvanized grips
• One straight plug nipple 10 x 6,5 mm ¼” external thread
• One angular rotary plug nipple 10 x 6,5 mm ¼” external thread
• One male Quickcoupling ¼” internal thread
• One female Quickcoupling ¼” internal thread
Kit P931X fits:
• TECNA 9311, 9312, 9313
Kit P932X includes:
• Polyurethane spiral tube without fitting
• A set of steel galvanized grips
• One straight plug nipple 12 x 8 mm ¼” external thread
• One angular rotary plug nipple 12 x 8 mm ¼” external thread
• One male Quickcoupling ¼” internal thread
• One female Quickcoupling ¼” internal thread
Kit P932X fits:
• TECNA 9320, 9321, 9322, 9323
• TECNA Light 4, Light 6, Light 8
Examples of pallets that can be produced on the Pneumatico ST-3300 machine:
four way entry - open boarded, 3 base, jednorazowa
EPAL pallet
Advantages of the Pneumatico ST-3300:
- Work ergonomics: Approximately 15 pallets per hour per operator
- Versatility: The adjustable work surface allows for the production of EUR pallets, single-use pallets and square-edged pallets

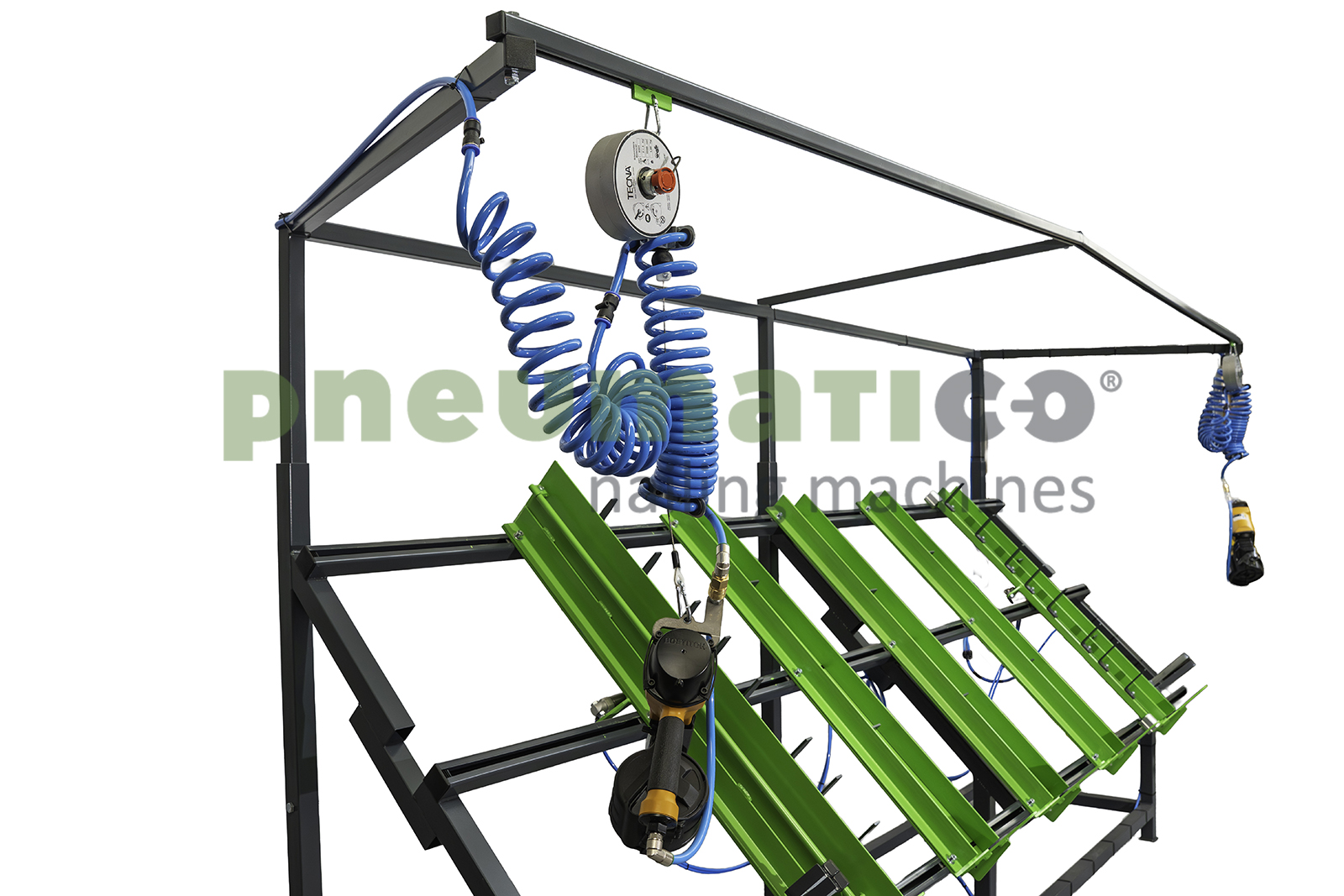

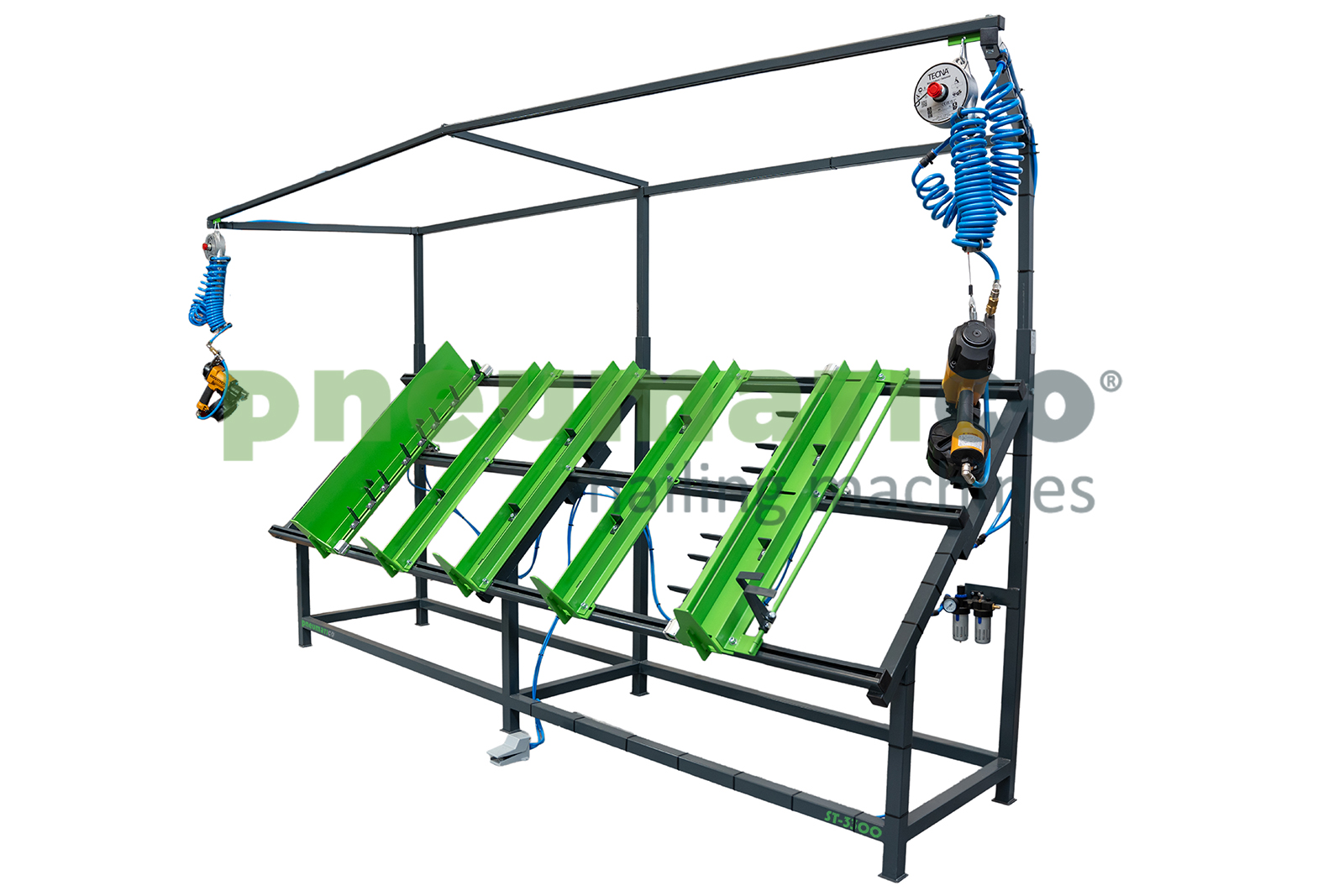

- Mast with balancers: Allows for smooth movement of the nailing machines during operation

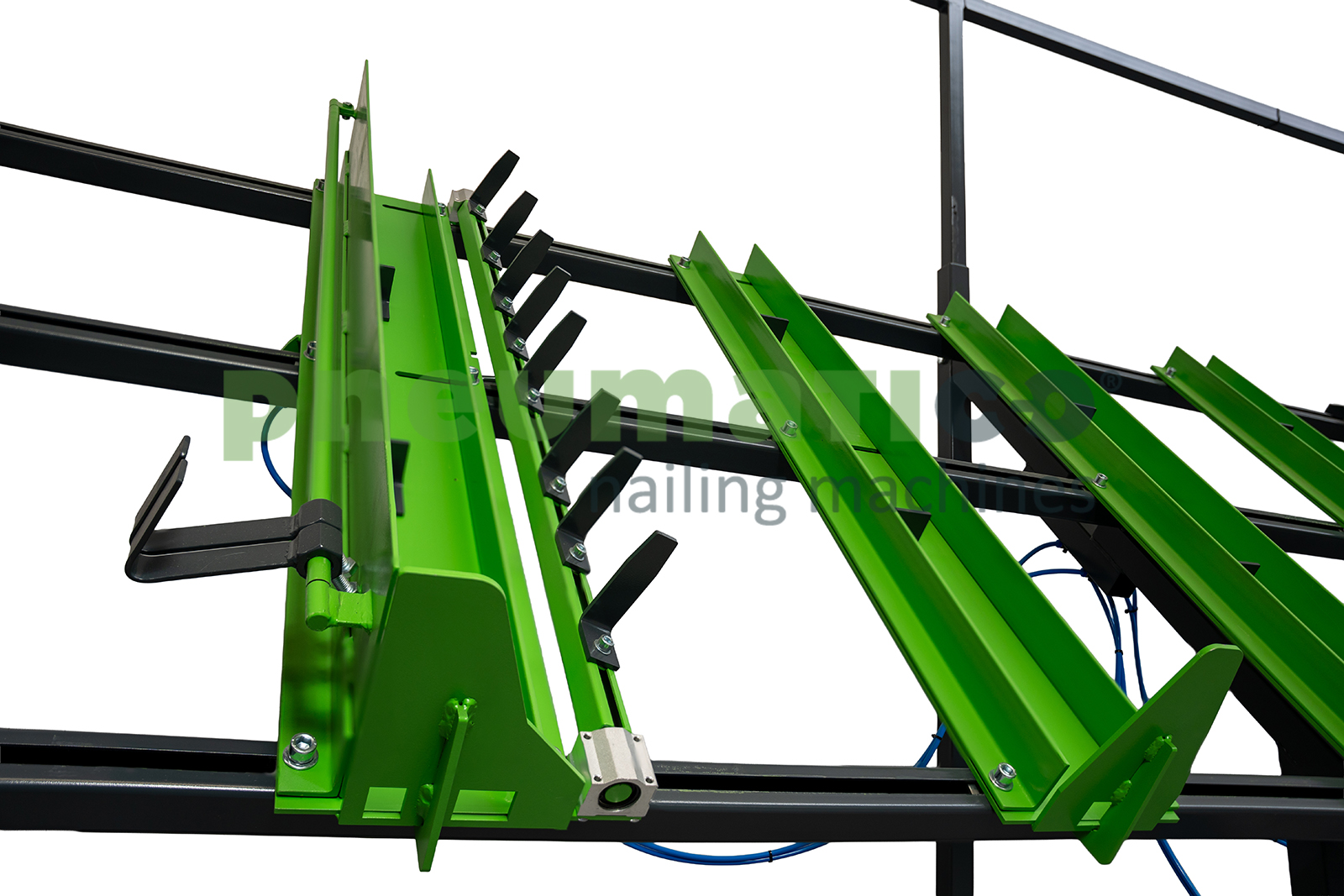

- Manually adjustable combs for horizontal boards
